John F. Ehlers Autocorrelation Periodogram for Amibroker (AFL)
Unlis
almost 9 years ago
Amibroker (AFL)

Rating:
3 / 5 (Votes 5)
Tags:
Autocorrelation, Periodogram, Ehlers, ambroker

Good Day! I translated indicator “Autocorrelation Periodogram” from book “Cycle Analytics for Traders”. Who needs the other indicators from this book on AFL I can do without problems. Best Regards, Ilya

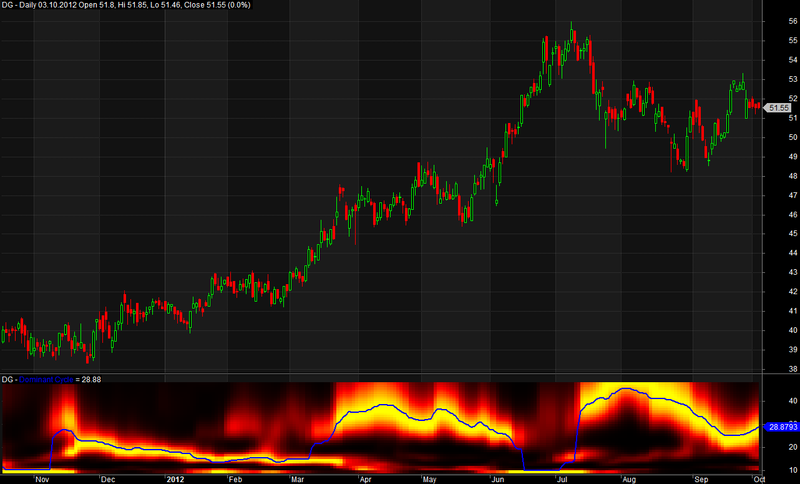

Screenshots

Indicator / Formula

Copy & Paste Friendly
/*
	Autocorrelation Periodogram
	2013 John F. Ehlers
*/

SetBarsRequired(sbrAll);

LPeriod = Param("Low-pass Period", 10, 3, 20);
HPeriod = Param("High-pass Period", 48, 22, 80);
IsPlotHeatMap = ParamToggle("Show HeatMap?", "No|Yes", 1);
IsPlotDominantCycle = ParamToggle("Show Dom. Cycle?", "No|Yes");

pi=3.1415926;

function RoofingFilter(lpPeriod, hpPeriod)
{
	alpha1 = (cos(0.707*2*pi / hpPeriod) + sin(0.707*2*pi / hpPeriod) - 1) / cos(0.707*2*pi / hpPeriod);
	a1 = exp(-1.414*pi / lpPeriod);
	b1 = 2*a1*cos(1.414*pi / lpPeriod);
	c2 = b1;
	c3 = -a1*a1;
	c1 = 1 - c2 - c3;

	HP = Close;
	Filt = HP;

	for(i = 2; i < BarCount; i++)
	{
		HP[i] = ((1 - alpha1 / 2)^2)*(Close[i] - 2*Close[i-1] + Close[i-2]) + 2*(1 - alpha1)*HP[i-1] - ((1 - alpha1)^2)*HP[i-2];
		Filt[i] = c1*(HP[i] + HP[i-1]) / 2 + c2*Filt[i-1] + c3*Filt[i-2];
	}

	return Filt;
}

function AGC(lowerCutoff, higherCutoff, acceptableSlope)
{
	factor = 0;
	accSlope = -acceptableSlope;	//acceptableSlope = 1.5 dB
	halfLC = lowerCutoff / 2;
	halfHC = higherCutoff / 2;
	ratio = 10^(accSlope/20);
	if(halfHC - halfLC > 0)
		factor = ratio^(1/(halfHC - halfLC));
	return factor;
}

function AutocorrelationPeriodogram(data, isHeatMap, isDomCyc)
{
	avgLength = 3;
	dominantCycle = 0;

	//Pearson correlation for each value of lag
	for(lag = 0; lag <= 48; lag++)
	{
		//Set the average length as M
		M = avgLength;
		if(avgLength == 0)
			M = lag;
		//Initialize correlation sums
		Sx = 0;
		Sy = 0;
		Sxx = 0;
		Syy = 0;
		Sxy = 0;
		//Advance samples of both data streams and sum Pearson components
		for(count = 0; count <= M-1; count++)
		{
			X = Ref(data, -count);
			Y = Ref(data, -(lag + count));
			Sx += X;
			Sy += Y;
			Sxx += X^2;
			Syy += Y^2;
			Sxy += X*Y;
		}
		var1 = (M*Sxx - Sx^2)*(M*Syy - Sy^2);
		VarSet("corr" + lag, IIf(var1 > 0, (M*Sxy - Sx*Sy)/sqrt(var1), 0));	//Compute correlation for each value of lag
		//VarSet("corrScale" + lag, IIf(var1 > 0, 0.5*((M*Sxy - Sx*Sy)/sqrt(var1) + 1), 0));	//Scale each correlation to range between 0 and 1
	}

	/*//Plot as a Heatmap (for scale each correlation to range between 0 and 1)
	for(period = 3; period <= 48; period++)
	{
		corr = VarGet("corrScale" + period);
		Red = IIf(corr > 0.5, 255*(2 - 2*corr), 255);
		Green = IIf(corr > 0.5, 255, 2*255*corr);
		PlotOHLC( period-1, period-1, period, period, "", ColorRGB( Red, Green, 0 ), styleCloud | styleNoLabel);
	}*/

	/*
		The DFT is accomplished by correlating the autocorrelation at each value of lag with the cosine and sine of each period of interest.
		The sum of the squares of each of these values represents the relative power at each period.
	*/
	for(period = 10; period <= 48; period++)
	{
		cosinePart = 0;
		sinePart = 0;

		for(n = 3; n <= 48; n++)
		{
			cosinePart += VarGet("corr" + n)*cos(2*pi*n / period);
			sinePart += VarGet("corr" + n)*sin(2*pi*n / period);
		}
		VarSet("sqSum" + period, cosinePart^2 + sinePart^2);
	}

	//EMA is used to smooth the power measurement at each period
	for(period = 10; period <= 48; period++)
		VarSet("r" + period, AMA((VarGet("sqSum" + period))^2, 0.2));

	//Find Maximum Power Level for Normalization
	K = AGC(10, 48, 1.5);
	for(period = 10; period <= 48; period++)
	{
		if(period == 10)
			VarSet("maxPwr", 0);
		VarSet("maxPwr", IIf(VarGet("r" + period) > VarGet("maxPwr"), K*VarGet("r" + period), VarGet("maxPwr")));
	}

	//Normalization power
	for(period = 10; period <= 48; period++)
		VarSet("pwr" + period, VarGet("r" + period)/VarGet("maxPwr"));

	//Compute the dominant cycle using the CG of the spectrum
	Spx = 0;
	Sp = 0;
	for(period = 10; period <= 48; period++)
	{
		Spx += IIf(VarGet("pwr" + period) >= 0.5,  period*VarGet("pwr" + period), 0);
		Sp += IIf(VarGet("pwr" + period) >= 0.5, VarGet("pwr" + period), 0);
	}
	dominantCycle = IIf(Sp != 0, Spx / Sp, 0);

	if(isHeatMap)
	{
		//Plot as a Heatmap
		for(period = 10; period <= 48; period++)
		{
			pwr = VarGet("pwr" + period);
			Red = IIf(pwr > 0.5, 255, 2*255*pwr);
			Green = IIf(pwr > 0.5, 255*(2*pwr - 1), 0);
			PlotOHLC( period-1, period-1, period, period, "", ColorRGB( Red, Green, 0 ), styleCloud | styleNoLabel, Null, Null, 0, 0);
		}
	}

	if(isDomCyc)
		Plot(dominantCycle, "Dominant Cycle", colorBlue, styleThick, Null, Null, 0, 1);

	return dominantCycle;
}

filtData = RoofingFilter(LPeriod, HPeriod);
AutocorrelationPeriodogram(filtData, IsPlotHeatMap, IsPlotDominantCycle);

24 comments

1. kv_maligi

Super

2. davidalan

dominant cycle = 0; "syntax error???

3. kv_maligi

Dear Ilya,

Thanks for sharing the code, its very good.
Request you please develop & share other indicators mentioned in the book.

Viswanath

4. kv_maligi

The book (Free PDF) is available at https://download.e-bookshelf.de/download/0004/0350/03/L-G-0004035003-0002588758.pdf.

Guys interested can down load from there

5. Unlis

davidalan, “dominant cycle = 0; syntax error???” – сan you explain what is wrong? I am here simply declare an array and fills it with zeros.

6. sal157011

Ilya, Autocorrelation Reversals code would be much apreciated.
kv_maligi, your free pdf has only 26 pages.

7. Unlis

sal157011, Ok!

8. kv_maligi

sal157011,
i too realized after some time going thrpugh it. I am searching for full PDF.
I tried to read those pages, but looked Greek to me.

The code “Autocorrelation Periodogram”, after attaching to a chart, gives trend direction & also strength of the trend clearly. As saying goes “A picture reveals 1000 secretes….”

Its superb coding by llya, It seems he is blessed with lots of skills, I am sure he will develop all useful codes.

viswanath

9. Unlis

Friends, “Autocorrelation Reversals” waiting for the approval.

10. parfumeur

Very nice work. You do need the book to understand what the indicator says.

Do post in the ‘Pastie’ area with “//” comments on the afl posted.

THANK YOU! for your contribution.

11. val2004

Tks a lot, autocorrelation reversals would be as well very appreciated

12. val2004

Unlis ,something else not related

Have a look please at

https://www.tradingview.com/script/ngr0qRmw-CM-Laguerre-PPO-PercentileRank-Mkt-Tops-Bottoms/

interesting indicator that may be translated into afl

13. Unlis

val2004, “https://www.tradingview.com/script/ngr0qRmw-CM-Laguerre-PPO-PercentileRank-Mkt-Tops-Bottoms/” – well, I will do.

14. val2004

tks a lot,

15. target1cr

how to apply this or use it.

16. kv_maligi

Dear Unlis,

Plz go through this. Sling shot trading system
https://www.tradingview.com/script/

This seems to be fantastic code. Can you plz develop this

Viswanath

17. davidalan

error 31 syntax error,unexpected ‘=’,expecting ‘(’ that’s the error message version 5.9 dominate cycle highlighted in blue

18. hotaro3

http://libgen.org/book/index.php?md5=3bffbaffcc01ab1031add7ef11b303df

Link for downloading full text book- cycle analytics for trader

19. kv_maligi

Many thanks hotaro3

20. kv_maligi

Plz have a look at CM sling slot trading system
https://www.tradingview.com/script/GE7tSQK1-CM-Sling-Shot-System/
http://wisestocktrader.com/indicatorpasties/1511-cm-sling-slot-trading-system

I do not know in which language its written, can any AFL expert guys convert this into AFL?

21. kv_maligi

Hellow Hotor3,

Can also please paste PDF link for “John Ehlers – Rocket Science for Traders”

Thanks
viswanath

22. gurudev

Hi Unlis,

Can please have a look at the MSLIDE, below is the code. can you try to convert it to AFL code.

src = hl2
len=input(13)
w = input(defval=4, title="width", minval=1, maxval=7, step=1)
lrc = linreg(src, len, 0)

lrcColor=change(lrc) >= 0 ? lime:red

plot(lrc, color=lrcColor, linewidth=3)

plot(w>=7?lrc:na, offset=7, color=lrcColor)
plot(w>=6?lrc:na, offset=6, color=lrcColor)
plot(w>=5?lrc:na, offset=5, color=lrcColor)
plot(w>=4?lrc:na, offset=4, color=lrcColor)
plot(w>=3?lrc:na, offset=3, color=lrcColor)
plot(w>=2?lrc:na, offset=2, color=lrcColor)
plot(w>=1?lrc:na, offset=1, color=lrcColor)

plot(w>=7?lrc:na, offset=-7, color=lrcColor)
plot(w>=6?lrc:na, offset=-6, color=lrcColor)
plot(w>=5?lrc:na, offset=-5, color=lrcColor)
plot(w>=4?lrc:na, offset=-4, color=lrcColor)
plot(w>=3?lrc:na, offset=-3, color=lrcColor)
plot(w>=2?lrc:na, offset=-2, color=lrcColor)
plot(w>=1?lrc:na, offset=-1, color=lrcColor)

Thanks

23. evertonalex

Hi, someone has the book for Cycle Analytics Traders in pdf? Thanks!

24. derek2209

Hello Ilya

On a Daily Chart
I would like to Plot a Weekly “Autocorrelation Periodogram “ in a Pane of its own.
I only need the ( LastValue( dominant Weekly Cycle )


I have tried inserting the lines of code below in the formula
but I get incorrect values for a Weekly Periodogram
I must have lines below in the wrong places
-————————————————————————————-

wc = TimeFrameCompress( Close, inWeekly );
TimeFrameSet( inWeekly );     // switch now to Weekly
TimeFrameRestore();        // restore time frame to original
Plot( TimeFrameExpand(dominantCycle,inWeekly)," dominantCycle Weekly", colorBlue );

Thank you in advance
Derek
