EBSW Even Better Sine Wave for Amibroker (AFL)

Rating:
2 / 5 (Votes 6)
Tags:
oscillator, amibroker

Even Better Sine Wave

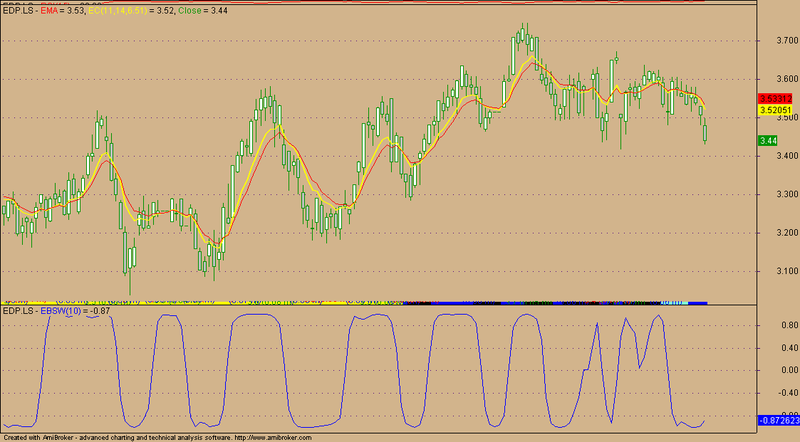

Screenshots

Indicator / Formula

Copy & Paste Friendly
SetBarsRequired( sbrAll );


function EBSW( Duration)
{
//HighPass filter cyclic components whose periods are shorter than Duration input
PI = 3.1415926;
alpha1 = (1 - sin (2*PI / Duration)) / cos(2*PI /Duration);
//Smooth with a Super Smoother Filter from equation 3-3
a1 = exp(-1.414*PI / 10);
b1 = 2*a1*cos(1.414*PI / 10);
c2 = b1;
c3 = -a1*a1;
c1 = 1 - c2 - c3;
HP = Close;
    Filt = HP;
    Wave = Filt;
    Pwr = Filt;
for( i = 3 ; i < BarCount; i++ )
    {
       HP[ i ]=.5*(1 + alpha1)*(Close[i] - Close[i-1]) + alpha1*HP[i-1];

Filt[i] = c1*(HP[i] + HP[i-1]) / 2 + c2*Filt[i-1] + c3*Filt[i-2];
}
//3 Bar average of Wave amplitude and power
Wave = (Filt + Ref(Filt,-1) + Ref(Filt,-2)) / 3;
Pwr = (Filt^2 + Ref(Filt,-1)^2 + Ref(Filt,-2)^2) / 3;
//Normalize the Average Wave to Square Root of the Average Power
Wave = Wave / sqrt(Pwr);
return wave;
}
Plot(EBSW(Param("Duration",20,1,200,1,0)),"EBSW"+ _PARAM_VALUES(),colorBlue);//Plot( array, Name, color/barcolor, style = styleLine, minvalue = {empty}, maxvalue = {empty}, XShift = 0, Zorder = 0 )
/*
//HighPass filter cyclic components whose periods are
shorter than Duration input
alpha1 = (1 - Sine (360 / Duration)) / Cosine(360 /
Duration);
HP = .5*(1 + alpha1)*(Close - Close[1]) + alpha1*HP[1];
//Smooth with a Super Smoother Filter from equation 3-3
a1 = expvalue(-1.414*3.14159 / 10);
b1 = 2*a1*Cosine(1.414*180 / 10);
c2 = b1;
c3 = -a1*a1;
c1 = 1 - c2 - c3;
Filt = c1*(HP + HP[1]) / 2 + c2*Filt[1] + c3*Filt[2];
//3 Bar average of Wave amplitude and power
Wave = (Filt + Filt[1] + Filt[2]) / 3;
Pwr = (Filt*Filt + Filt[1]*Filt[1] + Filt[2]*Filt[2]) / 3;
//Normalize the Average Wave to Square Root of the Average
Power
Wave = Wave / SquareRoot(Pwr);
Plot1(Wave);

4 comments

1. val2004

works very well

tks again

2. hotaro3

Even though I enjoyed of mathematical formula for calculating the wave but unfortunately using of this indicator is not a good Idea for Market specially Forex. I think you can work more on it to improve it

3. bsedoha

@sal157011 -What is the best way to use this indicator ?
@ val2004 – Which market you find it useful and how you are imnplementing in your Trade Plan ?

Thanks in advance.

Regards,

4. val2004

Bsedoha

I use it on stocks confirming with other indicators like relative slope
