MACD and histogram divergence detection for Amibroker (AFL)
dpk23
about 14 years ago
Amibroker (AFL)

Rating:
5 / 5 (Votes 3)
Tags:
oscillator, macd, amibroker, exploration

This indicator and exploration detects MACD line divergences and crossovers, and also detects MACD divergences.

By: Paul Moore

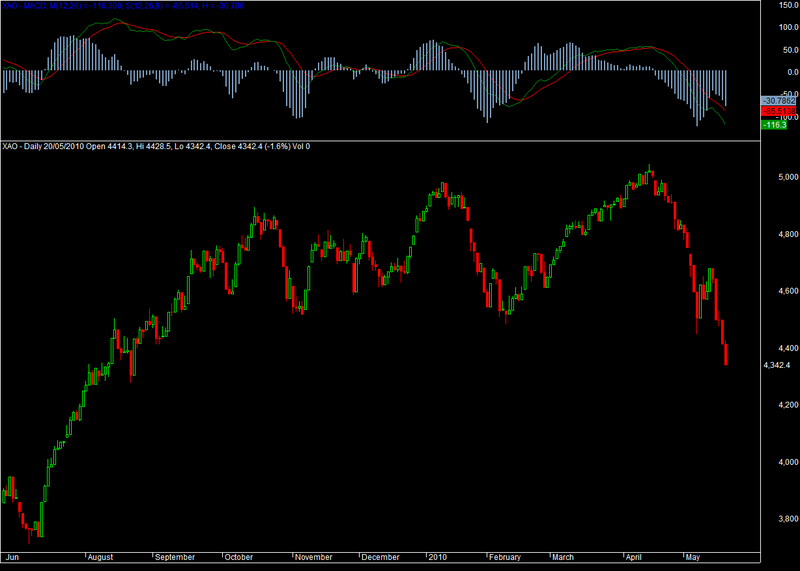

Screenshots

Similar Indicators / Formulas

Jasons Indicator Convergence Divergence (JICD)
Submitted by kaiji almost 15 years ago
Williams %R Exploration
Submitted by kaiji over 14 years ago
Awesome Oscillator (AO)
Submitted by zaroldo over 14 years ago
Reversing MACD
Submitted by kelvinhand over 11 years ago
%MACD
Submitted by mavirk over 14 years ago
rsi<30 and sort
Submitted by ali32b over 10 years ago

Indicator / Formula

Copy & Paste Friendly
//------------------------------------------------------------------------------
//
//  This indicator and exploration detects MACD line divergences and
//  crossovers, and also detects MACD divergences.
//
//------------------------------------------------------------------------------

_SECTION_BEGIN("MACD Divergence");
//
// MACD divergence system
//
// This system detects MACD and MACD-H positive and negative divergences, and
// crossovers.

// This indicator/expansion is based completely on indicators/explorations written
// by other AFL contributors, all of them much cleverer than me. There is very
// little original work here.

// As an indicator, it displays the usual MACD and MACD-H indicators. It also
// displays a shape indicating where a divergence or crossover occurs.
// As an exploration, simply select n = 1, define the stock universe to be
// examined, and press the "Explore" button. The detected stocks are listed
// together with a red/green color-coded indication of the divergence or
// crossover
// Several parameters can be configured, including the minimum divergence and
// histogram widths. Configure to suit your own requirements.

// This is still a work in progress, so if you have any suggestions or improvements,
// please let me know via the forum.

//----------------------------------------------------------------------------------

//------
// Setup
//------

// Parameters
PeriodEMA = 13;
MACDIndicatorRange = 50;

// Volume filter
VolumeFilter = Param( "Volume MA filter", 100000, 50000, 500000, 100000 );
Timeframe = Interval(2);

// Adjust for weekly if necessary
if( Timeframe == "5-day" || Timeframe == "Weekly" ) {
  VolumeFilter  = VolumeFilter * 5;
}
else if( Timeframe == "Monthly") {
  VolumeFilter = VolumeFilter * 20;
}
else if( Timeframe != "Daily" ) {
  VolumeFilter = 0;
}

// Minimum number of bars required to form a divergence pattern. For a
// positive divergence, this is the number of falling bars in the context
// of a rising MACD or MACD-H pattern. Vice versa for negative divergence
MACDDivMinWidth = Param("Divergence min width", 4, 1, 10, 1 );

// Minimum width of negative projecting wave between two positive MACD-H waves,
// otherwise two positive waves will be considered as one single wave. This
// minimises invalid divergences, to ensure that "back of bears is broken".
// The same applies for a positive wave between two negative waves.
HistMinWidth = Param("Histogram min width", 4, 1, 10, 1 );


PeriodEMA = Optimize( "PeriodEMA ", 13, 5, 23, 1 );

// Other parameters
OpenPositions = 10;
ATRPeriod = 5;
InitialCapital = 100000;

PeriodFast = Param( "Fast EMA", 12, 2, 200, 1 );
PeriodSlow = Param( "Slow EMA", 26, 2, 200, 1 );
PeriodSignal = Param( "Signal EMA", 9, 2, 200, 1 );
MACDInd = MACD(PeriodFast, PeriodSlow );
SigInd = Signal(PeriodFast, PeriodSlow , PeriodSignal );
HistInd = MACDInd - SigInd ;
_N( macdStr = WriteVal( PeriodFast, 1.0 )+","+WriteVal( PeriodSlow , 1.0 ) );
_N( sigStr = macdStr + ","+WriteVal( PeriodSignal , 1.0 ) );

// Get displayed min and max value of MACD and MACD-H, to rescale it for better visibility
scMACDMax = LastValue(HHV(Max(MACDInd, sigInd),
                  BarsSince( Status("barvisible") AND NOT Ref(Status("barvisible"),-1) )));
scMACDMin = LastValue(LLV(Min(MACDInd, sigInd),
                  BarsSince( Status("barvisible") AND NOT Ref(Status("barvisible"),-1) )));
scaleMACD = Max( abs(scMACDMax), abs(scMACDMin) );

scHistMax = LastValue(HHV(HistInd,
            BarsSince( Status("barvisible") AND NOT Ref(Status("barvisible"),-1) )));
scHistMin = LastValue(LLV(HistInd,
            BarsSince( Status("barvisible") AND NOT Ref(Status("barvisible"),-1) )));
scaleHist = Max( abs(scHistMax), abs(scHistMin) );


Plot( HistInd, "", colorLightBlue, styleHistogram  | styleOwnScale | styleThick ,
      -scaleHist * 1.2, scaleHist * 1.2);
Plot( MACDInd, "", colorGreen);
Plot( SigInd , "", colorRed);

Plot( scaleMACD * 1.2,"",colorRed,styleNoDraw);
Plot( -scaleMACD* 1.2 ,"",colorRed,styleNoDraw);
GraphXSpace = 0;

Title = EncodeColor(colorBlue) + Name() + " - MACD: M(" + macdStr + ") = "
        + WriteVal(MACDInd,1.3) + ", S(" + sigStr + ") = "
        + WriteVal(SigInd,1.3) + ", H = " + WriteVal(HistInd,1.3);

// If current symbol is NOT an index, compare volume MA to filter limit
VolumeMA = MA( V, 50 );
if( IsIndex() ) {
  VolumeMABool = True;
}
else {
  VolumeMABool = IsTrue( VolumeMA > VolumeFilter );
}

// Get MACD-H, EMA, Stochastics and RSI arrays
DayHist = MACD( PeriodFast, PeriodSlow ) -
          Signal( PeriodFast, PeriodSlow, PeriodSignal );
DayEMA = EMA( Close, PeriodEMA );
DaySTO = StochK( 14 );
DayRSI = RSI( 14 );
DayBuyBool = IsTrue(
                ( // DayEMA > Ref(DayEMA,-1)  // EMA rising
                  DaySTO < 70                 // STO not overbought
                  // AND DayRSI > Ref(DayRSI,-1) // RSI rising
                  AND MACD( PeriodFast, PeriodSlow ) < 0 )
                OR Timeframe == "5-day" OR Timeframe == "Weekly"
              );
DaySellBool = IsTrue(
                ( // DayEMA < Ref(DayEMA,-1)  // EMA falling
                  DaySTO > 30                 // STO not oversold
                  // AND DayRSI < Ref(DayRSI,-1) // RSI falling
                  AND MACD( PeriodFast, PeriodSlow ) > 0 )
                OR Timeframe == "5-day" OR Timeframe == "Weekly"
              );


//--------------------------
// Positive MACD divergences
//--------------------------

// Get array containing for each element, when the MACD's lowest
// value occur, within the specified number of bars
MACDLowBars = LLVBars( MACDInd, MACDDivMinWidth );

// Get array defining if the MACD's previous bar was the
// minimum, AND if that MACD value < 0
MACDMinCond = MACDLowBars > 0 AND
        Ref(MACDLowBars,-1) == 0 AND
        Ref(MACDInd,-1) < 0;

// Get array containing MACD low bar values where lows
// occured, all other bars filled with 0
MACDLowVal = IIf( MACDMinCond , Ref(MACDInd,-1), 0 );

// Get array containing MACD low bar value at bar where MACD
// low occured, all other bars filled with preceding MACD
// low value (chandelier)
MACDLowSteps = ValueWhen( Ref(MACDMinCond,0),
                          Ref(MACDInd,-1), 1 );

// Get array containing price low bar values where lows
// occured, all other bars filled with huge number
PriceMACDLowVal = IIf( MACDMinCond,
                       Ref(LLV(L,MACDDivMinWidth ),-1),
                       2000000 );

// Get array containing local price low bar value at bar
// where MACD low occured, all other bars filled with preceding
// price low value (chandelier)
PriceMACDLowSteps = ValueWhen( Ref(MACDMinCond ,0),
                               LLV(L,MACDDivMinWidth ) );

// Get array containing differences in MACD low bar values
MACDLowDiffs = MACDLowSteps - Ref(MACDLowSteps,-1);

// Get array containing differences in price low bar values
PriceMACDLowDiffs = PriceMACDLowSteps - Ref(PriceMACDLowSteps,-1);

// Get array defining positive divergences
MACDLowBarDiffs = Ref( BarsSince(MACDMinCond ), -1 );

// Divergence signal
MACDPosDivergence = // MACDLowDiffs > 0 AND
         MACDLowVal < 0
         AND MACDLowVal > LLV(MACDLowVal, MACDIndicatorRange )
         AND PriceMACDLowVal < LLV(Ref(PriceMACDLowVal,-1), MACDIndicatorRange )
         AND PriceMACDLowDiffs < 0
         AND MACDLowBarDiffs < MACDIndicatorRange
         AND VolumeMABool
         AND C > 1.0
         // AND WeekBuyBool
         ;


//--------------------------
// Negative MACD divergences
//--------------------------

// Get array containing for each element, when the MACD's highest
// value occur, within the specified number of bars
MACDHighBars = HHVBars( MACDInd, MACDDivMinWidth );

// Get array defining if the MACD's previous bar was the
// maximum, AND if that MACD value > 0
MACDMaxCond = MACDHighBars > 0 AND
         Ref(MACDHighBars,-1) == 0 AND
         Ref(MACDInd,-1) > 0;

// Get array containing MACD high bar values where highs
// occured, all other bars filled with 0
MACDHighVal = IIf( MACDMaxCond,
                   Ref(MACDInd,-1), 0);

// Get array containing MACD high bar value at bar where MACD
// high occured, all other bars filled with preceding MACD
// high value (chandelier)
MACDHighSteps = ValueWhen( Ref(MACDMaxCond,0),
                           Ref(MACDInd,-1), 1 );

// Get array containing MACD high bar values where highs
// occured, all other bars filled with 0
PriceMACDHighVal = IIf( MACDMaxCond,
                        Ref(HHV(H,MACDDivMinWidth),-1),
                        0);

// Get array containing local price high bar value at bar
// where MACD high occured, all other bars filled with preceeding
// price high value (chandelier)
PriceMACDHighSteps = ValueWhen( Ref(MACDMaxCond,0),
                                HHV(H,MACDDivMinWidth) );

// Get array containing differences in MACD high bar values
MACDHighDiffs = MACDHighSteps - Ref(MACDHighSteps,-1);

// Get array containing differences in price high bar values
PriceMACDHighDiffs = PriceMACDHighSteps - Ref(PriceMACDHighSteps,-1);

// Get array defining negative divergences
MACDHighBarDiffs = Ref( BarsSince(MACDMaxCond), -1 );

// Divergence signal
MACDNegDivergence = // MACDHighDiffs < 0 AND
         MACDHighVal > 0
         AND PriceMACDHighVal > HHV( Ref(PriceMACDHighVal,-1), MACDIndicatorRange )
         AND MACDHighVal < HHV( MACDHighVal, MACDIndicatorRange )
         AND PriceMACDHighDiffs > 0
         AND MACDHighBarDiffs < MACDIndicatorRange
         AND VolumeMABool
         AND C > 1.0
         // AND WeekBuyBool
         ;


//------------------------------------
// Positive MACD Histogram divergences
//------------------------------------

// Get array containing when positive and negative and positive
// crossovers occured
HistPosCrossover = Cross( HistInd, 0 ) ;
HistNegCrossover = Cross( 0, HistInd ) ;
BarsSinceNegCross = BarsSince( HistNegCrossover );
BarsSincePosCross = BarsSince( HistPosCrossover );

// Get arrays containing for each element, when the MACD-H lowest
// values occur, within the specified number of bars
HistLowBars = LLVBars( HistInd, MACDDivMinWidth );

// Get array defining if the MACD-H previous bar was the minimum
// AND if that MACD-H value was < 0 or > 0
HistMinCond = HistLowBars > 0 AND
        BarsSinceNegCross >= HistLowBars AND
        Ref(HistLowBars,-1) == 0 AND
        Ref(HistInd,-1) < 0;

// Get array containing MACD-H  low bar values where lows
// occured, all other bars filled with 0
HistLowVal = IIf( HistMinCond , Ref(HistInd,-1), 0 );

// Get array containing MACD-H  low bar value at bar where MACD-H
// low occured, all other bars filled with preceding MACD-H
// low value (chandelier)
HistLowSteps =  ValueWhen( Ref(HistMinCond,0), Ref(HistInd,-1), 1 );

// Get array containing differences between MACD-H low bar value and the value
// at previous MACD-H zero positive crossing
// HistLowDiffs = HistLowSteps - ValueWhen( HistPosCrossover, HistLowSteps, 1 );
HistLowDiffs = HistLowSteps - Ref(HistLowSteps,-1);

// Get array containing MACD-H min value when MACD-H < 0, all other
// bars filled with 0
BarsSincePrevNegCross = ValueWhen( HistNegCrossover,
                                   Ref(BarsSinceNegCross ,-1), 1 );
BarsSinceWideNegCross = IIf( HistInd < 0 AND
                             BarsSincePosCross - BarsSinceNegCross <
                                 HistMinWidth,
                             BarsSincePrevNegCross + BarsSinceNegCross + 1,
                             BarsSinceNegCross  );
HistMinSteps = IIf( !BarsSinceWideNegCross,
                    HistInd,
                    LLV( HistInd , BarsSinceWideNegCross + 1) );

// Get array containing differences in MACD-H max bar values
HistMinDiffs = IIf( HistInd < 0,
                    HistMinSteps - Ref(HistMinSteps,-1),
                    0);

// Get minumum from previous MACD-H negative wave
// Plot( ValueWhen( HistNegCrossover, Ref(HistMinSteps,-1), 1 ),"PrevHistMinSteps-1", colorGreen );
// Plot( ValueWhen( HistNegCrossover, Ref(HistMinSteps,-1), 2 ),"PrevHistMinSteps-1", colorGreen );
PrevHistMinSteps = IIf( HistInd < 0 AND
                        BarsSincePosCross - BarsSinceNegCross <
                            HistMinWidth,
                        ValueWhen( HistNegCrossover,
                                   Ref(HistMinSteps,-1), 2 ),
                        ValueWhen( HistNegCrossover,
                                   Ref(HistMinSteps,-1), 1 ) );

// Get array containing price low bar values where lows
// occured, all other bars filled with huge number
PriceHistLowVal = IIf( HistMinCond,
                       Ref(LLV(L,MACDDivMinWidth),-1),
                       2000000 );

// Get array containing local price low bar value at bar
// where MACD-H low occured, all other bars filled with preceding
// price low value (chandelier)
PriceHistLowSteps = ValueWhen( Ref(HistMinCond ,0),
                               LLV(L,MACDDivMinWidth) );

// Get array containing differences in price low bar values
PriceHistLowDiffs = PriceHistLowSteps - Ref(PriceHistLowSteps,-1);

// Get array containing price low minimum value when MACD-H < 0,
// all other bars filled with 0
PriceHistMinSteps = IIf( !BarsSinceNegCross,
                          L,
                          LLV( L , BarsSinceNegCross) );

// Get minimum from previous MACD-H negative wave
PrevPriceHistMinSteps = IIf( BarsSincePosCross - BarsSinceNegCross <
                                HistMinWidth,
                             ValueWhen( HistNegCrossover,
                                        Ref(PriceHistMinSteps,-1), 2 ),
                             ValueWhen( HistNegCrossover,
                                        Ref(PriceHistMinSteps,-1), 1 ) );

// Divergence signal
HistPosDivergence = // HistLowDiffs > 0 AND
         // AND PriceHistLowDiffs < 0
         HistMinSteps > PrevHistMinSteps
         AND PriceHistMinSteps < PrevPriceHistMinSteps
         AND HistLowVal < 0
         AND VolumeMABool
         AND C > 1.0
         ;


//------------------------------------
// Negative MACD Histogram divergences
//------------------------------------

// Get arrays containing for each element, when the MACD-H highest values
// occur, within the specified number of bars
HistHighBars = HHVBars( HistInd, MACDDivMinWidth );

// Get array defining if the MACD-H previous bar was the maximum,
// AND if that MACD-H value was < 0 OR > 0
HistMaxCond = HistHighBars > 0
         AND BarsSincePosCross >=  HistHighBars
         AND Ref(HistHighBars,-1) == 0
         AND Ref(HistInd,-1) > 0
         ;

// Get array containing MACD-H high bar values where highs
// occured, all other bars filled with 0
HistHighVal = IIf( HistMaxCond, Ref(HistInd,-1), 0);

// Get array containing MACD-H high bar value at bar where MACD-H
// high occured, all other bars filled with preceding MACD-H
// high value (chandelier)
HistHighSteps = ValueWhen( Ref(HistMaxCond,0),
                           Ref(HistInd,-1), 1 );

// Get array containing differences in MACD-H high bar values
HistHighDiffs = HistHighSteps - Ref(HistHighSteps,-1);

// Get array containing MACD-H max value when MACD-H > 0, all other
// bars filled with 0
BarsSincePrevPosCross = ValueWhen( HistPosCrossover,
                                   Ref(BarsSincePosCross ,-1), 1 );
BarsSincePrevNegCross = ValueWhen( HistNegCrossover,
                                   Ref(BarsSinceNegCross ,-1), 1 );
BarsSinceWidePosCross = IIf( HistInd > 0 AND
                             BarsSinceNegCross - BarsSincePosCross <
                                HistMinWidth,
                             BarsSincePrevPosCross + BarsSincePosCross + 1,
                             BarsSincePosCross  );
HistMaxSteps = IIf( !BarsSinceWidePosCross,
                    HistInd,
                    HHV( HistInd , BarsSinceWidePosCross + 1) );

// Get array containing differences in MACD-H max bar values
HistMaxDiffs = IIf( HistInd > 0,
                    HistMaxSteps - Ref(HistMaxSteps,-1),
                    0);

// Get high from pevious MACD-H positive wave
PrevHistMaxSteps = IIf( HistInd > 0 AND
                        BarsSinceNegCross - BarsSincePosCross <
                            HistMinWidth,
                        ValueWhen( HistPosCrossover,
                                   Ref(HistMaxSteps,-1), 2 ),
                        ValueWhen( HistPosCrossover,
                                   Ref(HistMaxSteps,-1), 1 ) );

// Get array containing MACD-H high bar values where highs
// occured, all other bars filled with 0
PriceHistHighVal = IIf( HistMaxCond,
                        Ref(HHV(H,MACDDivMinWidth),-1),
                        0);

// Get array containing local price high bar value at bar
// where MACD-H high occured, all other bars filled with preceeding
// price high value (chandelier)
PriceHistHighSteps = ValueWhen( Ref(HistMaxCond,0),
                                HHV(H,MACDDivMinWidth) );

// Get array containing differences in price high bar values
PriceHistHighDiffs = PriceHistHighSteps - Ref(PriceHistHighSteps,-1);

// Get array containing MACD-H max value when MACD-H > 0, all other
// bars filled with 0
PriceHistMaxSteps = IIf( !BarsSincePosCross,
                         H,
                         HHV( H , BarsSincePosCross) );

// Get high from pevious MACD-H positive wave
PrevPriceHistMaxSteps = IIf( BarsSinceNegCross - BarsSincePosCross <
                                 HistMinWidth,
                             ValueWhen( HistPosCrossover,
                                        Ref(PriceHistMaxSteps,-1), 2 ),
                             ValueWhen( HistPosCrossover,
                                        Ref(PriceHistMaxSteps,-1), 1 ) );

// Divergence signal
HistNegDivergence = // HistHighDiffs < 0 AND
         // AND PriceHistHighDiffs > 0
         HistMaxSteps < PrevHistMaxSteps
         AND PriceHistMaxSteps > PrevPriceHistMaxSteps
         AND HistHighVal > 0
         AND VolumeMABool
         AND C > 1.0
         ;


//-----------------------
// MACD crossover signals
//-----------------------

PosCrossover = Cross( DayHist, 0 )
        AND DayBuyBool
        AND VolumeMABool
        AND C > 1.0
        ;
NegCrossover = Cross( 0, DayHist )
        AND DaySellBool
        AND VolumeMABool
        AND C > 1.0
        ;


// Plot signals
PlotShapes( IIf( HistPosDivergence , shapeSmallUpTriangle, shapeNone ),
            colorBlue, 0, 0 , -12  );
PlotShapes( IIf( HistNegDivergence , shapeSmallDownTriangle, shapeNone ),
            colorBlue, 0, 0, -12  );
PlotShapes( IIf( MACDPosDivergence , shapeUpArrow , shapeNone ),
            colorBlue, 0, Graph1, -12 );
PlotShapes( IIf( MACDNegDivergence , shapeDownArrow, shapeNone ),
            colorBlue, 0, Graph1, -12 );
PlotShapes( IIf( PosCrossover , shapeSmallCircle, shapeNone ),
            colorBlue, 0, Graph1 , 0  );
PlotShapes( IIf( NegCrossover , shapeSmallCircle, shapeNone ),
            colorBlue, 0, Graph1 , 0  );

Filter = HistPosDivergence
         OR HistNegDivergence
         OR PosCrossover
         OR NegCrossover
         OR MACDPosDivergence
         OR MACDNegDivergence
         ;

if( Sector = SectorID( 0 ) >= 0 )
{
  Sector = SectorID( 1 );
  Industry = IndustryID( 1 );
}
else
{
  Sector = "MG";
  Industry = "MG";
}


AddColumn( 32, "H-PD", formatChar, colorDefault,
           IIf(Filter && HistPosDivergence,colorBrightGreen,colorDefault) );
AddColumn( 32, "M-PD", formatChar, colorDefault,
           IIf(Filter && MACDPosDivergence,colorBrightGreen,colorDefault)  );
AddColumn( 32, "M-PC", formatChar, colorDefault,
           IIf(Filter && PosCrossover,colorBrightGreen,colorDefault) );
AddColumn( 32, "H-ND", formatChar, colorDefault,
           IIf(Filter && HistNegDivergence,colorRed,colorDefault)  );
AddColumn( 32, "M-ND", formatChar, colorDefault,
           IIf(Filter && MACDNegDivergence,colorRed,colorDefault)  );
AddColumn( 32, "M-NC", formatChar, colorDefault,
           IIf(Filter && NegCrossover,colorRed,colorDefault)  );
AddTextColumn( Sector , "Sector" );
AddTextColumn( Industry , "Industry" );

_SECTION_END();

2 comments

1. eurosiva

Line 513 shows “warning 501. assignment with conditional”

2. viet

This is a great code for exploring divergence between prices and MACD. Can anyone upgrade or improve the results of the exploration since the code is quite complicated and is not easy for a novice like me? Many thanks! Please share your ideas.

Leave Comment

Please login here to leave a comment.

Back
